■ 基本信息
啟動子: | PH |
復制子: | pBR322 |
終止子: | polyhedrin 3 |
質粒分類: | 昆蟲細胞桿狀病毒組成型表達質粒 |
質粒大小: | 9632bp |
原核抗性: | Amp |
克隆菌株: | DH5a |
培養條件: | 37度 |
表達宿主: | 昆蟲細胞 |
誘導方式: | 組成性表達，無需誘導 |
5'測序引物: | Polyhedrin-F：AAATGATAACCATCTCGC |
3'測序引物: | Polyhedrin-R：GTCCAAGTTTCCCTG |
■ 質粒屬性
質粒宿主: | 昆蟲細胞 |
質粒用途: | 蛋白表達 |
片段類型: | ORF
|
片段物種: |
|
原核抗性: | Amp |
真核抗性: |
|
熒光標記: |
|
■ 質粒簡介
pVL1392 and pVL1393 are 9.8 kb vectors designed for use as baculovirus transfer vectors. These transfer vectors contain recombination sequences which are homologous to sequences in the baculovirus genome.Upon cotransfection, these sequences undergo homologous recombination resulting in a recombinant viral genome packaged in infectious viral particles.
These vectors are nonfusion vectors, which provide the AcMNPV polyhedrin enhancer-promoter sequences to drive high expression, and a multiple cloning site, conveniently constructed in opposite orientations, for simple subcloning. Translation initiation sequences must be provided by the inserted cDNA.
? Multiple cloning site polylinker, positioned in opposite orientations
? Recombination sequences for insertion into the baculovirus genome
? Polyhedrin enhancer-promoter sequences for high expression of recombinant protein Features for growth and maintenance in E. coli:
? Ampicillin gene for selection
? pMB1 origin of replication from pUC19 for high copy number growth

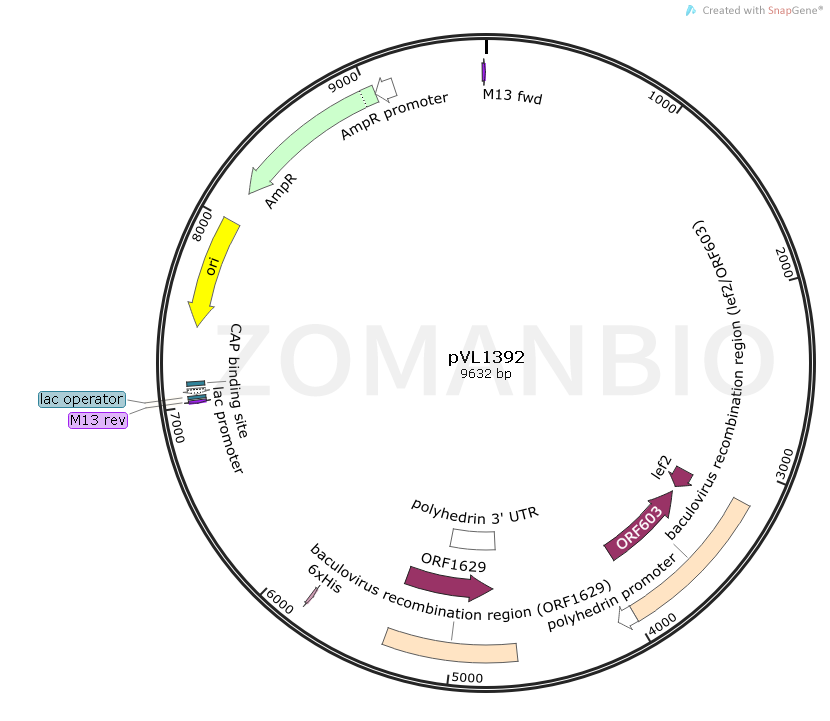

■ 質粒圖譜
■ 質粒序列
質粒序列請下載：
ZK1043pVL1392昆蟲胞內質粒.txt
質粒只保證關鍵序列正確，不保證表達效果。
