■ 基本信息
啟動子: | ADH1 |
復制子: | 2μ |
質粒分類: | 酵母系列，酵母三雜交載體 |
質粒大小: | 6526bp |
原核抗性: | Amp |
真核抗性: | TRP1 |
克隆菌株: | DH5a |
培養條件: | 37度 |
表達宿主: | 酵母細胞 |
5'測序引物: | M13R:CAGGAAACAGCTATGACC |
3'測序引物: | 根據序列設計引物 |
■ 質粒屬性
質粒宿主: | 酵母菌 |
質粒用途: | 雜交 |
片段類型: |
|
片段物種: |
|
原核抗性: | Amp |
真核抗性: | TRP1
|
熒光標記: |
|
■ 質粒簡介
pBridgeTM expresses two proteins: a DNA-binding domain fusion, and an additional protein (1–3). pBridge thus allows establishment of three-hybrid systems when used in combination with an activation domain fusion vector and yeast strains from any of CLONTECH's GAL4-based two-hybrid systems (#K1604-1, #K1605-1, #K1612-1). This vector generates a hybrid protein that contains the sequences for the GAL4 DNA-binding domain (DNA-BD; a.a. 1–147) and the sequence cloned into MCS I. The fusion protein is expressed in yeast host cells from the constitutive ADH1 promoter; transcription is terminated at the ADH1 transcription termination signal. The hybrid protein is targeted to the yeast nucleus by nuclear localization sequences (NLS) that are an intrinsic part of the GAL4 DNA-BD (3). An additional gene of interest can be cloned into MCS II which is located downstream of an HA epitope and a second NLS. The resulting fusion protein is conditionally expressed from the MET25 promoter in response to methionine levels in the medium; i.e., it is repressed in the presence of 1 mM methionine and expressed in the absence of methionine (1).
pBridge is a shuttle vector that replicates autonomously in both E. coli and S. cerevisiae. It carries the bla gene (for ampicillin resistance in E. coli) and the TRP1 nutritional marker that allow yeast auxotrophs carrying pBridge to grow on limiting synthetic medium lacking tryptophan. Note: Yeast strain Y187 is a methionine auxotroph; therefore, haploid Y187 harboring pBridge cannot be grown on medium lacking methionine.

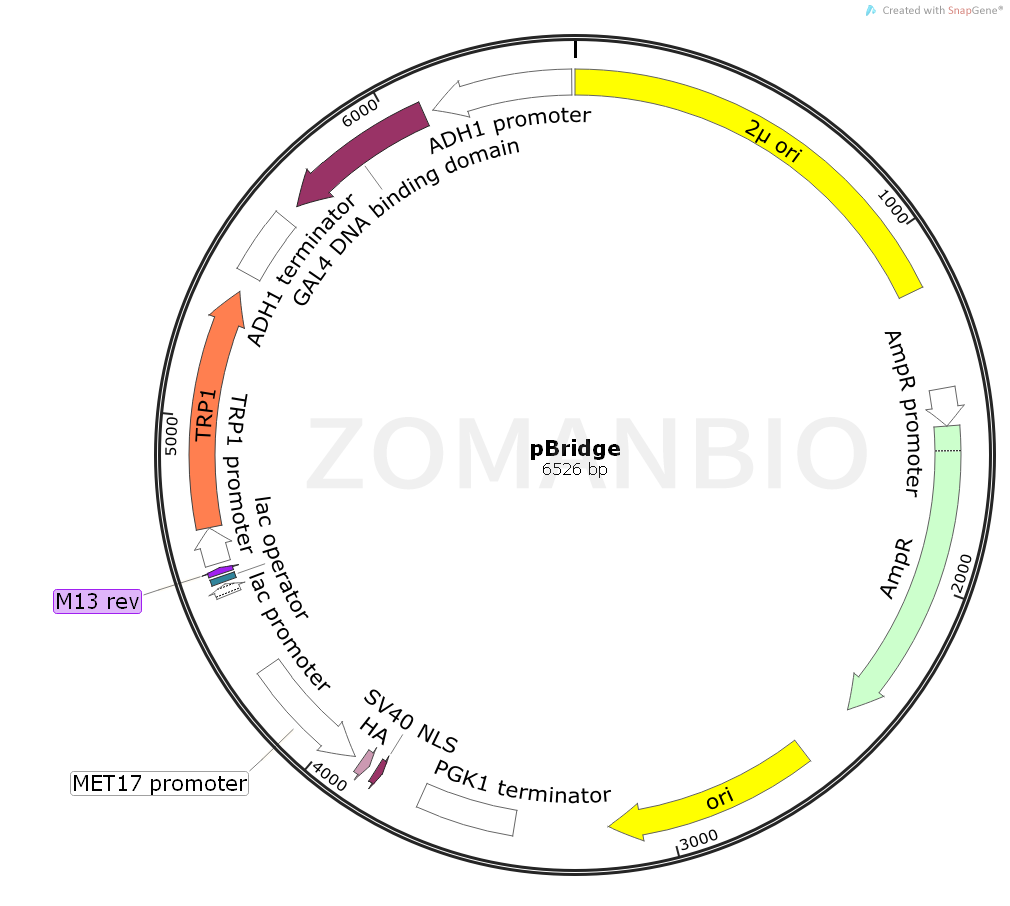

■ 質粒圖譜
■ 質粒序列
質粒序列請下載：
ZK990pBridge酵母三雜交類質粒.txt
